Vapor Control Valves for Gauging, Sampling

Vapor Control Valves for Gauging, Sampling

  • MMC B-type vapor-control valves
  • Positive shut-off units
  • Trimode tank gauging
  • Ullage, interface, temperature and oxygen sensing
  • B-type, Micro “B” and the MMC (Asia) F50 are 2″ (50mm) full-bore valves
  • Flanged valves for easy installation and accurate positioning
  • Constructed of grade 316 stainless steel with a stainless steel cap. (Bronze cap available upon request.)
  • Stainless steel ball valves with Teflon ball valve seals
  • Available in 1/2 or 1/3 liter sampling, size 2″ with MMC sampling tapes
  • 1″ valves available for manual tank sounding
  • 3″ valves available for 1 liter sampling

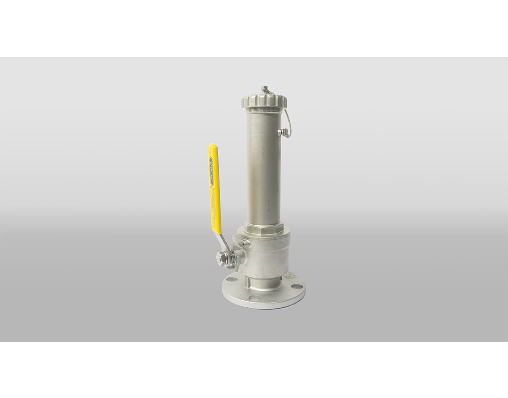

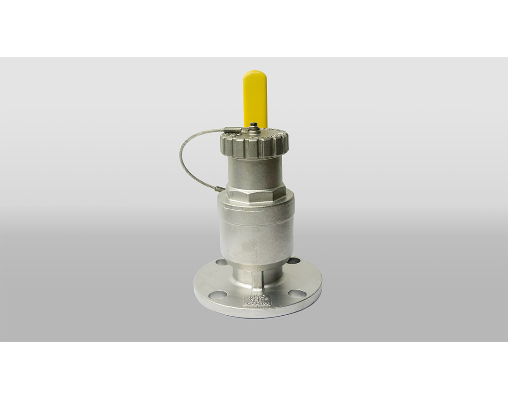

Suitable for positive tank isolation, MMC B-type vapor-control valves are positive shut-off units that support Trimode tank gauging functions (ullage, interface & temperature) as well as oxygen sensing. They are available in three models. The original B-type, Micro “B” and the MMC (Asia) F50 are all 2″ (50mm) full-bore valves. All valves are flanged for ease in installation and accurate positioning. Constructed of 316 stainless steel with a stainless steel cap, they have stainless steel ball valves with Teflon seals. In addition, 1/2 or 1/3 liter sampling is available in all 2″ sizes with the use of MMC sampling tapes. All gauging tapes fit directly into any type of MMC vapor-control valve.

More Specifications:

Viton ® used for all other seals. A stainless steel cap is standard and a selection of other seal materials are optional. (Viton ® is a registered trademark of DuPont Dow Elastomers.)

Mounting Flange Dimensions:



  • 2″ “B” Valve 2318-23-F316-SC50 – 6″ (152) O.D., BC 4 3/4″ (121) – Bolt Holes (4) 3/4″ (19)
  • 2″ Micro B2318-24-FMS-SC50 – Bolt Holes (4) 3/4″ (19).
  • 2″ F50 50mm MMC-A (JIS) – 155mm (6.1″) O.D., BC 120mm (4.72″) – Bolt Holes (4) 19 (0.75″)

Weights:

  • 2″ “B” Valve – 14 lb (6.35 kg)
  • 2″ Micro “B” – 13 lb (5.9 kg)
  • 2″ F50 MMC-A (JIS) – 19.8 lb (9 kg)
  • Pressure Rating: 150 psi
  • MMC Type “B” Vapor Control Valve Dimensions
  • Model Numbers and Technical Specs

MMC Type “B” Vapor Control Valve Dimensions
