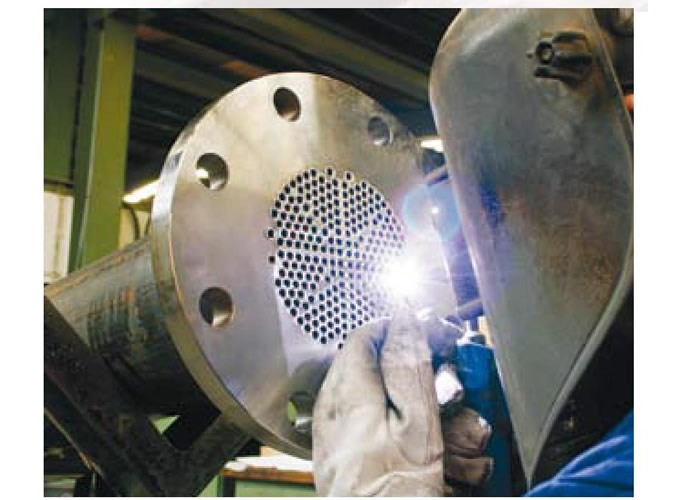

Shell-and-tube heat exchangers
Standard series and customer oriented solutions
FUNKE focuses on customer orientation, highest quality standards, flexibility and advisory skills – important benefits a company of just the right size is able to offer.

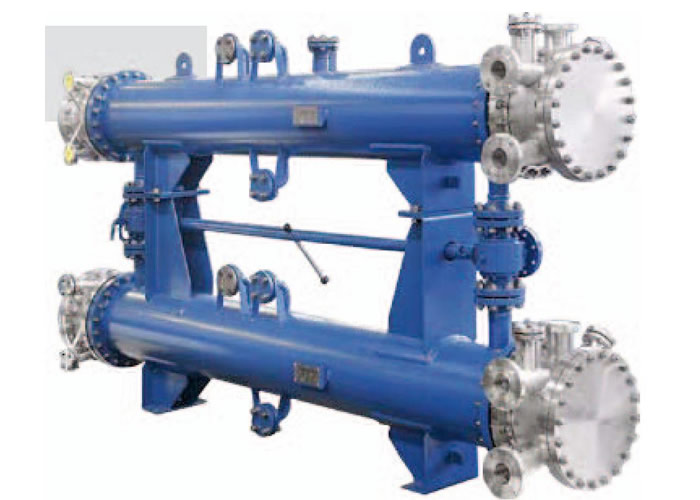

The FUNKE heat exchangers from the TDW series (Turbo- Spin heat exchangers) are very compact heat exchangers with an removable tube bundle, which were developed
for the cooling of hydraulic oils or hydraulic replacement fluids* (see table). Exchanger surfaces from 0.15 m² – 4.00 m² can be installed in fixed and reasonably graduated building sizes. The thermotechnically highly efficient spin-shaped
oil flow on the shell side is generated by the arrangement of special helical screws whose pitch can be adapted to the flow quantity.
Technical Description

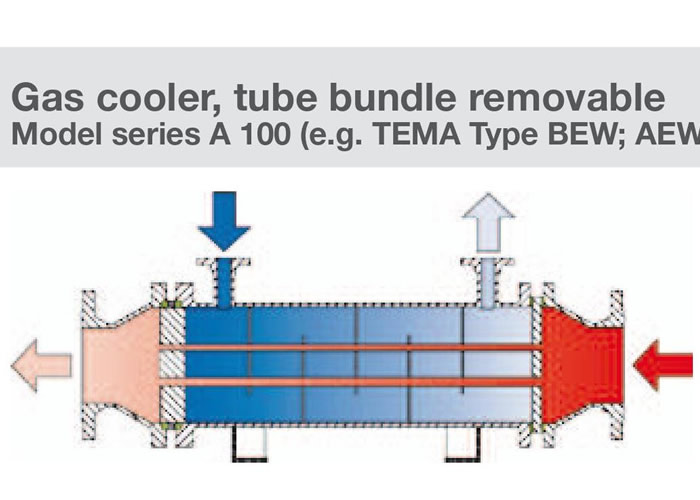

The heat exchanger CCFA (SSCFA in stainless steel version) is a further development of the proven heat exchanger model series BCF for use as a gas cooler.
The CCFA has been designed with a fixed tube bundle and is only available as a tube side single-pass version (gas flowing through the tubes), thus it can easily be integrated into the gas pipework.
The cooling water is routed on the shell side in a counter- flow direction. Optionally a horizontal or vertical fitting position is possible.
