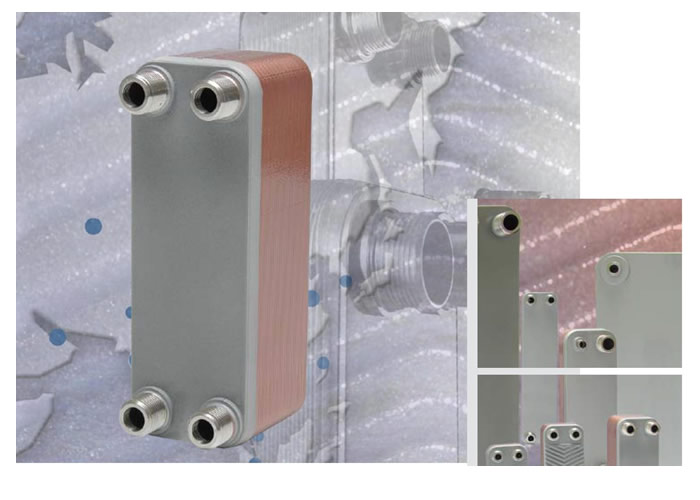

Brazed Plate Heat Exchangers
Universal solutions for industrial and domestic applications
Construction

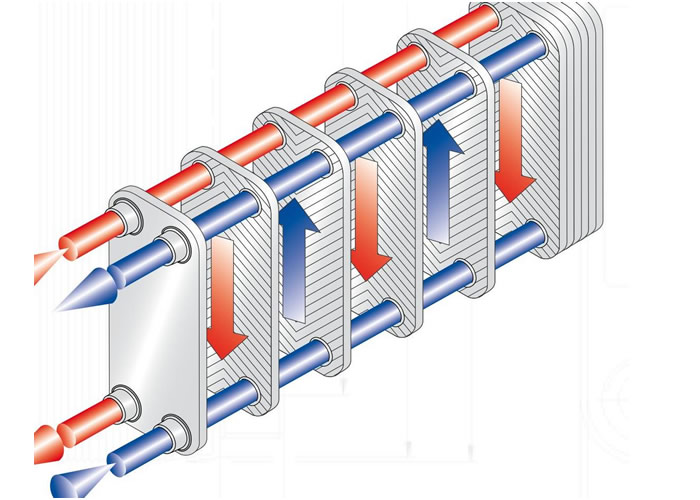

FUNKE brazed plate heat exchangers are made of cor- rugated stainless steel plates. The plates are assembled in a 180° angle to each other. Depending on the require- ments of the application, the plates are vacuum brazed to a pressure-resistant unit using either copper or nickel. This results in separate flow gaps with counter-flow of the media involved in the heat exchange (standard).
Applications
Typical applications for brazed plate heat exchangers are heating, cooling, condensing
- System separation
- Heat extraction and heat recovery in domestic and process technology
- Refrigeration engineering
- Mechanical engineering
- Oil cooling
- Hot water / Process water
- Heating engineering (solar thermal systems, central heating, floor heating)
- Evaporation / Condensing in cooling systems
- Air drying
- Hydraulic oil cooling

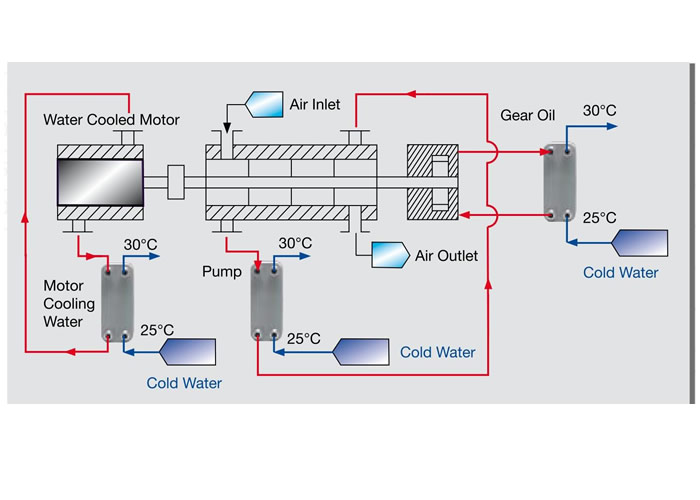

- Cooling of machines and motors
- Mold machine temperature control
- Economizing
